Trimble TX5 3D Laser Scanner

Trimble TX5 3D Laser Scanner

The Trimble TX5 3D laser scanner is a revolutionary and highly versatile 3D scanning solution for a broad variety of scanning applications. The compact and lightweight design provides unmatched mobility at the job site, increasing field productivity. The intuitive and easy to use onboard interface allows new users to quickly get up to speed. Operation of the Trimble TX5 is made easy with a touch screen interface that is clear and concise.

Specifications

Performance – Ranging Unit

• Unambiguity Interval: 153.49 m (503.58 ft)
• Range¹: 0.6 m – 120 m (indoor or outdoor, low ambient light, normal incidence to a 90% reflective surface)
• Measurement Speed: 122,000 / 244,000 / 488,000 / 976,000 points per second
• Ranging Error²: ±2 mm at 10 m and 25 m (at both 90% and 10% reflectivity)

Color Unit

• Resolution: Up to 70 megapixel color
• Dynamic Color Feature: Automatic adaptation of brightness

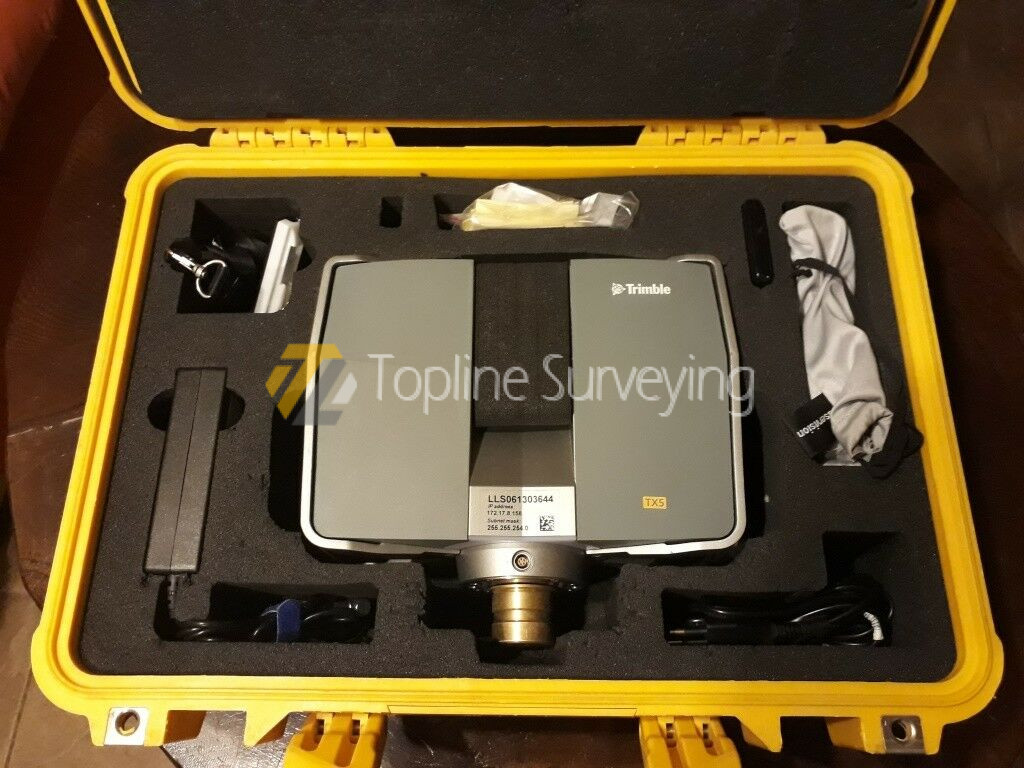

Package Includes

• Trimble TX5 3D Laser Scanner
• Trimble Hard Transport Case
• Rechargeable Battery
• Charging Dock
• Laser Safety Goggles
• Shoulder Strap
• Allen Wrench & Screws
• Memory Card
• Power Supply Charger
• AC Power Cable
• Benro Tripod
