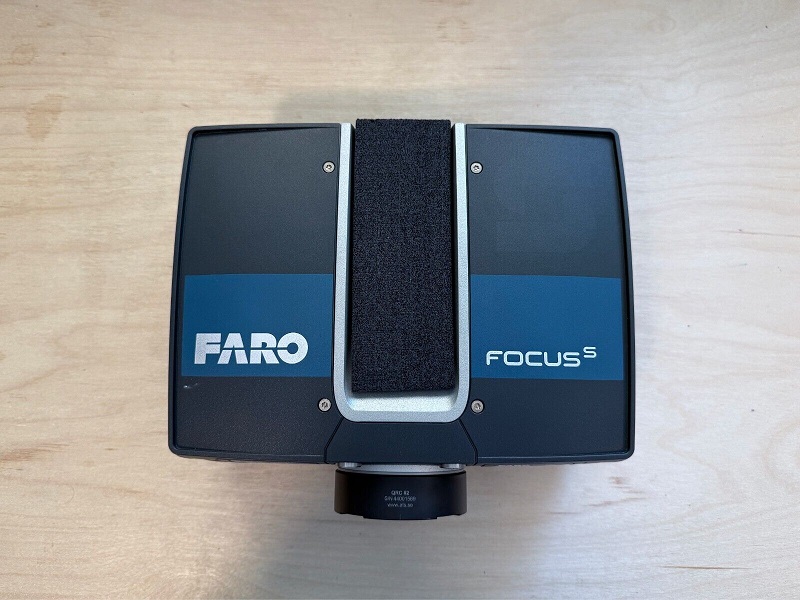

Faro Focus S150 3D Laser Scanner

This Faro Focus S150 is a fantastic tool for professionals in various industries, including architecture, engineering, construction, and more. Don’t miss this opportunity to own a high-quality 3D laser scanner at a fraction of the cost of a new one.

LASER SCANNER FOR MEDIUM-RANGE APPLICATIONS
The Focus S series is the latest addition to FARO’s popular, compact, lightweight and intuitive laser scanner product line. The devices of this series are the most forward-thinking laser scanners on the market, adding several customer centric features, such as Ingress Protection Rating (IP54), increased scanning accuracy and range, an internal accessory bay and a built-in on-site compensation routine.

The Focus S150 combines all benefits from FARO’s well-known Focus3D Laser Scanners with today’s most innovative features to perform laser scanning in both indoor and outdoor environments – truly mobile, fast and reliable.

The FARO Focus S150 provides the next level of laser scanning for all applications in industries like Construction, BIM/CIM, Public Safety and Forensics.

BENEFITS

• Scanning in rough environments while providing protection from dust, debris and water splashes
• Confident data quality through the on-site compensation
• Reality-like scan data by increased distance accuracy and angular accuracy
• Future-proof investment and expandability due to the integrated accessory bay
• Easy handling of scanner control through its large and luminous touchscreen

PERFORMANCE SPECIFICATIONS:

GENERAL

• Power supply voltage: 19V (external supply) 14.4V (internal battery)
• Power consumption: 15W idle, 25W scanning, 80W charging
• Battery service life: 4.5 hours
• Operating temperature: 5° – 40°C
• Extended operating temperature: -20° – 55°C
• Storage temperature: -10° – 60°C

Ranging unit

• Unambiguity interval: 614m for 122 to 488 kpts/s 307m for 976 kpts/s
• Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
• Ranging error: ±1mm
• Angular accuracy: 19 arcsec for vertical/horizontal angles
• 3D position accuracy: 10m: 2mm / 25m: 3.5mm

Color unit

• Resolution: Up to 165 megapixel color
• High Dynamic Range (HDR): Exposure Bracketing 2x, 3x, 5x
• Parallax: Minimized due to co-axial design

Deflection unit

• Field of view (vertical/horizontal):300° / 360°
• Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0.009° (40,960 3D-Pixel on 360°)
• Max. vertical scan speed: 97Hz

Laser (optical transmitter)

• Laser class: Laser class 1
• Wavelength: 1550nm
• Beam divergence: 0.3mrad (1/e)
• Beam diameter at exit: 2.12mm (1/e)

This Faro Focus S150 is in excellent condition, has been gently used, and is professionally maintained.

Condition: Excellent – minimal usage and well cared for.

Calibration: Last calibrated in 2023 by a certified Faro technician.

Accessories Included: Comes with the original power supply, cables, and standard accessories.

Software: Not included – Faro offers various software options that can be purchased separately.
