Faro ION Laser Tracker
The Faro ION is one of the most reliable systems built by Faro! It will get your job done for a fraction of the cost of a new laser tracker. The tracker is in excellent condition – some cosmetic wear (minor scuff marks and scratches) that does not affect performance.
Features
- 0.049mm (0.002”) volumetric accuracy at 10m (33 feet)
- 110m* (361 feet*) diameter range
- Agile ADM instant beam acquisition
- As light as 17.7kg
- High performance, real-time dynamic measurements
System Specifications
Dimensions
- Head size: 280mm (W) x 554mm (H)
- Head weight: 17.7kg (19.5kg w/IFM option)
- Controller size: 282mm (L) x 180mm (D) x 280mm (H)
- Controller weight: 5.2kg
Range
- Horizontal envelope: ± 270°
- Vertical envelope: +75° to -50°
- Minimum working range: 0 meters
- Maximum working range: 55m with select targets
- 40m with standard 1.5” & 7/8” SMRs
- 30m with standard 1/2” SMR
Environmental
- Altitude: -700 to 2,450 meters
- Humidity: 0 to 95% non-condensing
- Operating Temperature: -15°C to 50°C
Distance Measurement Performance**
Agile ADM
- Resolution: 0.5μm
- Sample rate: 10,000/sec
- Accuracy: 8μm + 0.4μm/m
- R0 Parameter: 8µm
Optional Interferometer
- Resolution: 0.5μm
- Sample rate: 10,000/sec
- Accuracy: 8μm + 0.4μm/m
- R0 Parameter: 8µm

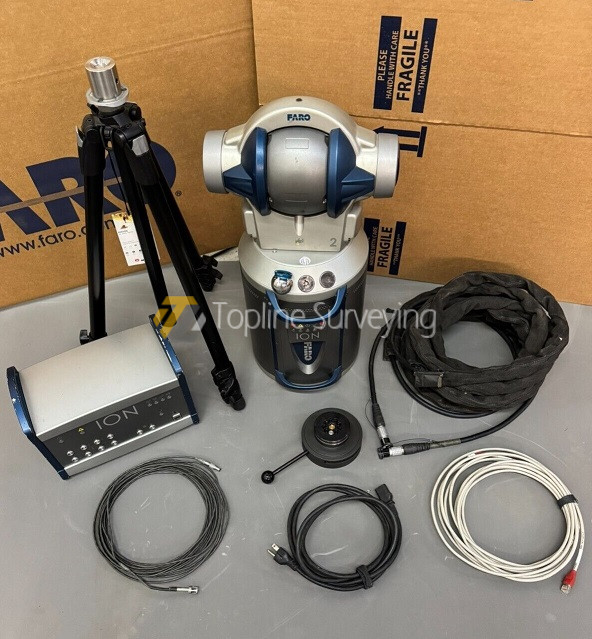

The following items are included in the purchase price:
- FARO Laser Tracker ION head
- Absolute Distance Meter (ADM)
- Precision Level Sensor
- Master Control Unit (MCU)
- MCU-to-tracker cable (10-meter)
- Remote air temperature sensor (10-meter)
- Cross-wired ethernet cable
- Power cord
- Calibration certificate
- Shipping cases (2)
- Used 1.5-inch SMR
