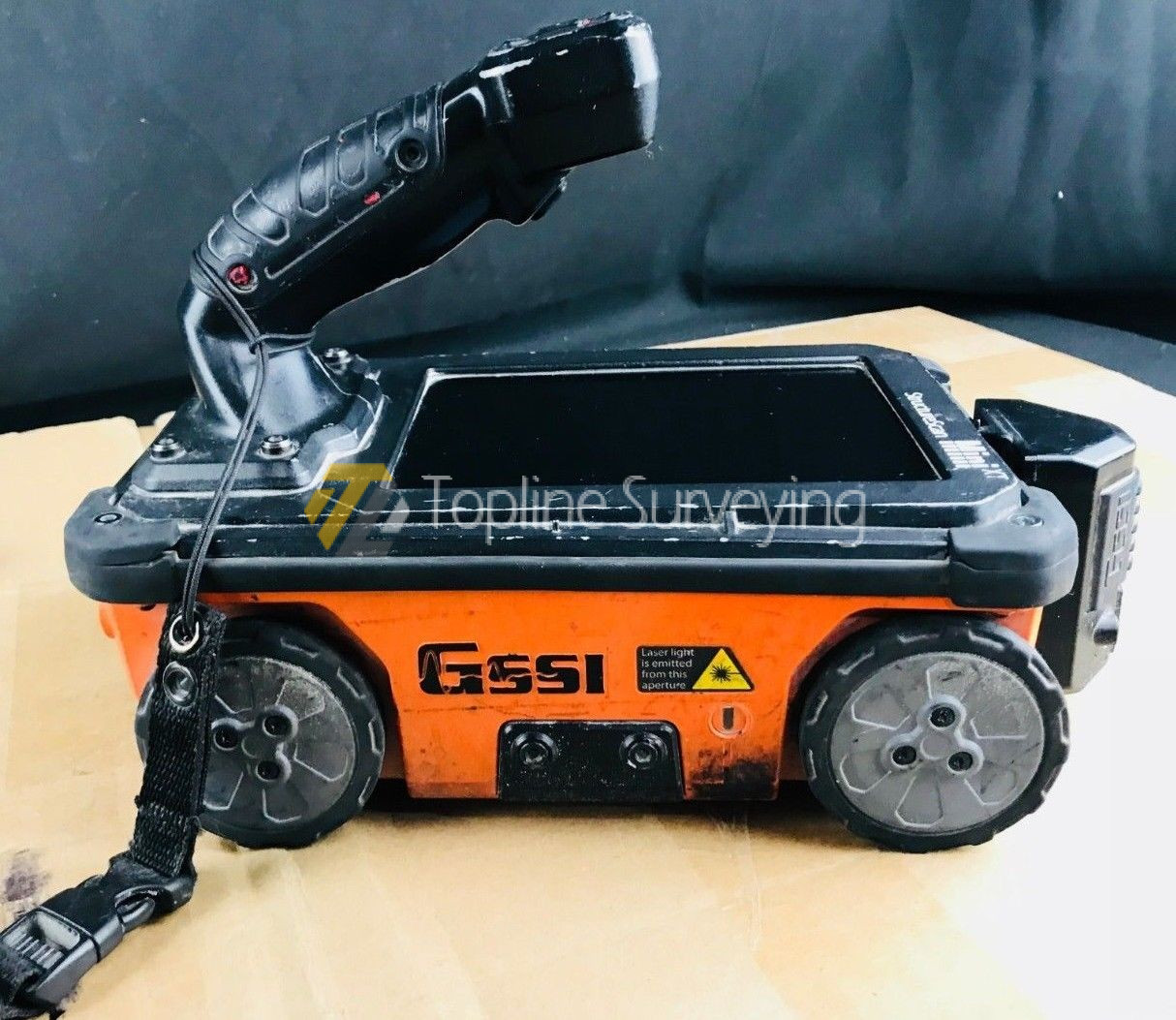

GSSI StructureScan Mini XT Ground Penetrating Radar

Up for sale GSSI StructureScan Mini XT Ground Penetrating Radar

• Antenna Frequency: 2.7 GHz
• Maximum Depth: Up to 60 cm (24 inches) in standard concrete
• Display: 6.5-inch high-definition (HD) LED-backlit LCD touchscreen
• Storage Capacity: 14.5 GB internal memory
• Unit Weight: 1.8 kg (4 lbs)
• Battery Life: Approximately 2.5 hours per lithium-ion battery
• Environmental Rating: IP65 (water-resistant and dust-proof)
• Scanning Modes: Includes QuickScan (single-button 2D data collection), ScanMax (advanced data analysis with real-time Focus Mode), and Scan3D for complex reinforcement grids.
• Dielectric Range: Selectable from 4 to 12 in steps of 0.1 to calibrate for different concrete types.
• Data Format: GSSI RADAN
