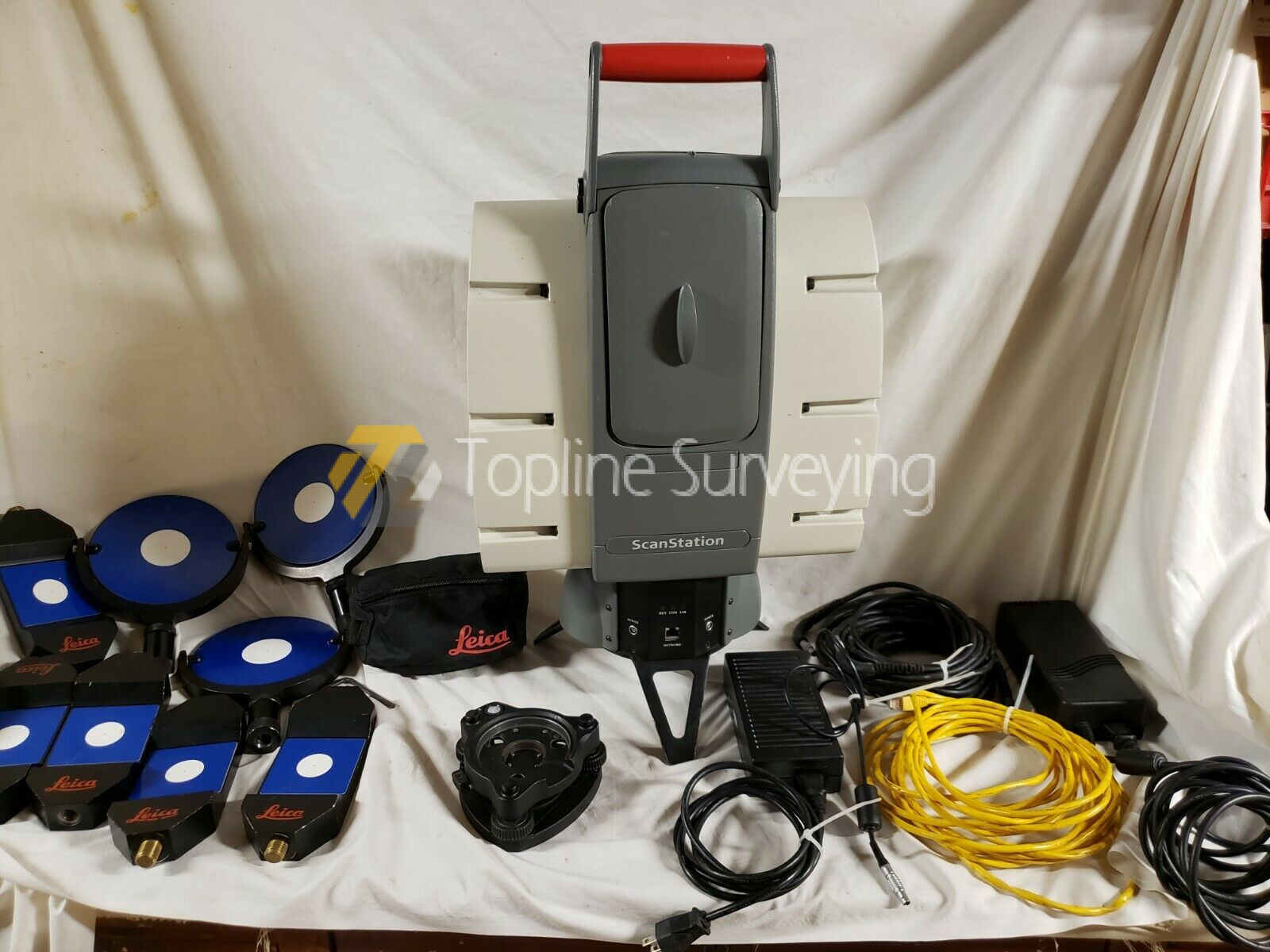

Leica Geosystems HDS LLC Laser Scanner HDS 3600 ScanStation

Up for sale Leica Geosystems HDS LLC Laser Scanner HDS 3600 ScanStation

• Scanner TypePulsed, dual-axis compensated laser scanner
• Maximum RangeUp to 300 meters (at 90% albedo); 134 m (at 18% albedo)
• Scan RateUp to 50,000 points per second (maximum instantaneous rate)
• Field of View360° (Horizontal) × 270° (Vertical)
• Positional Accuracy6 mm at 50 m
• Distance/Modeled Precision± 4 mm (distance) / 2 mm (modeled surface precision/noise)
• Spot Size<6 mm at 50 m
• CameraIntegrated, bore-sighted digital camera for auto-calibrated photo overlays
• LevelingBuilt-in dual-axis compensator (Resolution: 1″, dynamic range: ± 5′ )
• Power SystemFlexible “hot-swap” external power supply (36V AC or DC)
• Weight~14 kg (Scanner head only)
