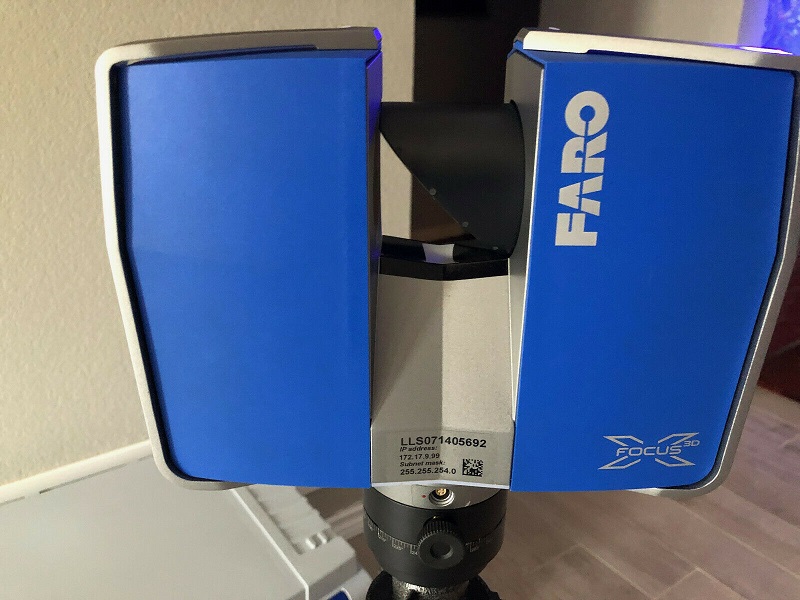

Up for sale Faro Focus X330 HDR 3D Laser Scanner w/ CF Tripod and 12 Reference Spheres. Condition is Excellent. Never dropped or mishandled. This unit has spent 90% of its life in a storage closet.
Barely used this scanner. In fact I don’t think it’s been used on more than 10 jobs since We bought it.
At time of purchase, unit will be sent to FARO for new calibration and then shipped to customer.
Benefits
- The Focus3D X 330 with scanning range of 330m, integrated GPS and possibility to work under direct sunlight makes it an ideal tool for surveying task and 3D Documentation.
Performance Specifications: Focus 3D X 330
General
- Power supply voltage: 19V (external supply) 14.4V (internal battery)
- Power consumption: 40W and 80W (while battery charges)
- Battery life: Up to 4.5 hours
- Ambient temperature: 5° – 40°C
Ranging unit
- Unambiguity interval: 307m @ 976,000 pts/sec
- Range Focus3D X 3301: 0.6m – 330m
- Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
- Ranging error: ±2mm
Colour unit
- Resolution: Up to 70 megapixel colour
- Dynamic colour feature: Automatic adaption of brightness
- Parallax: Co-axial design
Deflection unit
- Field of view (vertical/horizontal): 300° / 360°
- Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0.009° (40,960 3D-Pixel on 360°)
- Max. vertical scan speed: 5,820rpm or 97Hz
Laser (optical transmitter)
- Laser class: Laser class 1
- Wavelength: 1550nm
- Beam divergence: Typical 0.19mrad(0.011°)(1/e, half angle)
- Beam diameter at exit: Typical 2.25mm (1/e)
Package Includes
- Focus 3D-X330 Laser Scanner
- Laser Scanner Cover
- FARO Focus Hard Transport Case
- Charging Dock
- Rechargeable Battery
- Power Supply Charger
- AC Power Cable
- CF Tripod and 12 Reference Spheres
- 90 Days Warranty
