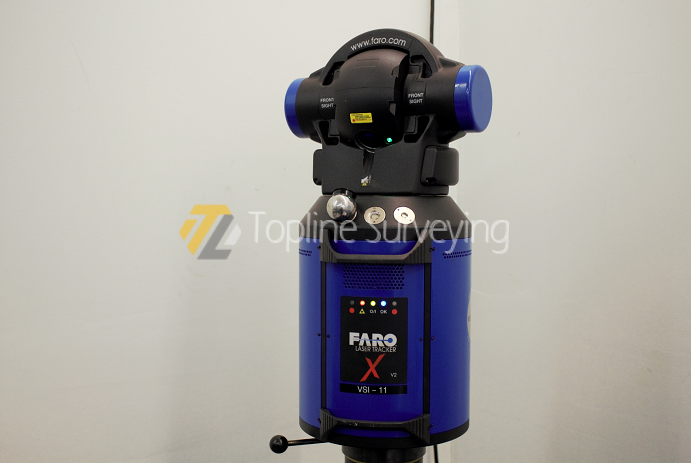

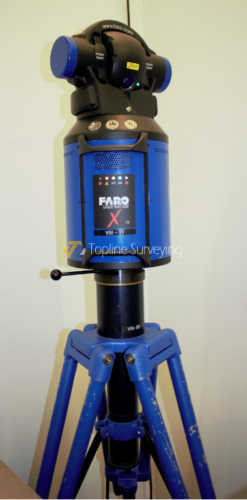

Faro X Laser Tracker

Up for sale FARO X Laser Tracker, works great and in great condition. Has been used very little, used only for Training purposes. price only US$17,500.00

Xtreme Measurement Range!
The FARO Laser Tracker X is a portable, contact measurement system that uses laser technology to accurately measure large parts and machinery across a wide range of industrial applications. It has a 70m (230ft) diameter range, achieves 0.011mm (0.0004”) 3D single-point accuracy, and is rugged enough for the shopfloor environment. The system measures 3D coordinates with its laser by following a mirrored spherical probe. High-accuracy, angular encoders — along with XtremeADM (absolute distance measurement) — reports the 3D position of the probe in real-time.

Features

• 70m (230ft) range
• Up to 0.011mm (0.0004”) accuracy
• XtremeADM instant beam acquisition
• Instant-on laser
• Automated compensation

Faro X Laser Tracker System Specifications

• Head size: 280x554mm (11×21.8in)
• Head weight: 20kg (44lbs)
• Controller size: 160x180x280mm (6x7x11in)
• Controller weight: 5kg (12lbs)

Range

• Horizontal envelope: ±270°
• Vertical envelope: +75° to -50°
• Minimum working range: 0m
• Maximum working range: 70m (230ft) diameter

Environmental

• Altitude: -700 to 2450m
• Humidity: 0 to 95% noncondensing
• Operating temperature: -15°C to 50°C (5°F to 122°F)

Distance Measurement Performance

• Resolution: 0.5µm
• Sample rate: 10,000 samples/sec
• Accuracy: 10µm+0.4µm/m
• R0 Parameter: 10µm

Angle Measurement Performance

• Angular accuracy: 18µm+3µm/m
• Maximum angular velocity: 180°/sec
• Optional precision level accuracy: ±2 arcseconds

Includes:

• FARO X Laser Tracker with controller and all included cables
• Tripod stand
• 1 Reflector
• Traveling case
• 1 seat of Verisurf Software
•  90 Days Warranty
