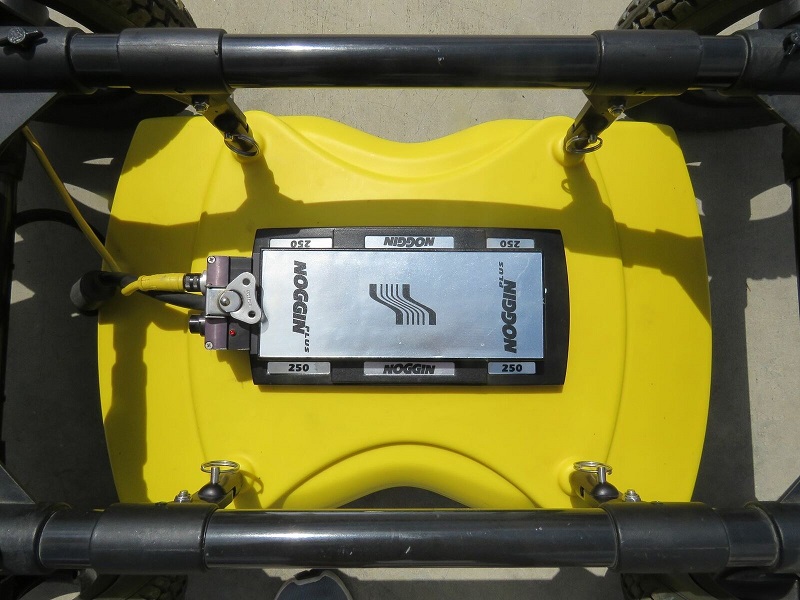

Sensors & Software Noggin Plus 250 with SmartCart

Sensors & Software Noggin Plus 250 with SmartCart Ground Penetrating Radar
Noggins are available in four center frequencies, ranging from 100 MHz for deep penetration to 1000 MHz for shallow, high resolution surveys. Easily switch your Noggin between a cart, hand-tow, trailer or handle configuration to collect data in any terrain. Noggin’s patented ultra-wide band (UWB), ground-coupled antennas provide maximum signal penetration and the highest GPR data quality. Noggins provide optimal flexibility and performance for your diverse needs.

Noggin 250 Specifications:
Size 63x41x23 cm (25x16x9 in)
Weight 7.3 kg (12.5 lbs)
Center Frequency – 3db Bandwidth 250 MHz – 125-375 MHz
Shielding Front to Back > 20dB
Max Time Window 2000 ns @ ns/pt
Max Depth Setting 100m (328 ft)

Condition
Used. New battery installed. Unit appears to be in good physical and functional condition.

Includes
(1) Noggin Plus 250 Ground Penetrating Radar
(1) SmartCart
(1) New Battery
(1) Battery charging cable 110V
30 Day warranty.
