Trimble SPS620 5″/5″ DR Robotic Total Station

Flash sale Trimble SPS620 5″/5″ DR Robotic Total Station is in perfect working condition! This unit looks and works great! Comes with 60 days warranty.

This kit includes a Trimble SPS620 Total Station which is paired with the Trimble Nomad Data Collector and LM80 Layout Software to be used in the MEP or Concrete & General Contracting trade. The SPS620 is one of the total stations in Trimble’s line of SPS-Series total stations.

Specifications:

• Angular Accuracy: 5″ (arc-seconds) horizontal and vertical.
• Angle Measurement Speed: Returns angles at 1000 Hz, averaged over 2 seconds (over 2,000 observations).
• Distance Range (Prism): Up to 3,500 m – 5,000 m (approx. 2.2 to 3.1 miles) depending on prism configuration.
• Reflectorless (DR) Range: >800 m (2,625 ft) to a 90% reflective surface.
• Distance Measurement Accuracy (Prism): ±(2 mm + 2 ppm)
• Telescope Magnification: 30×
• Power Supply: Rechargeable internal battery.
• Software Compatibility: Fully compatible with field software like Trimble Access (v2017 and newer) or SCS900 (v3.42 and newer)

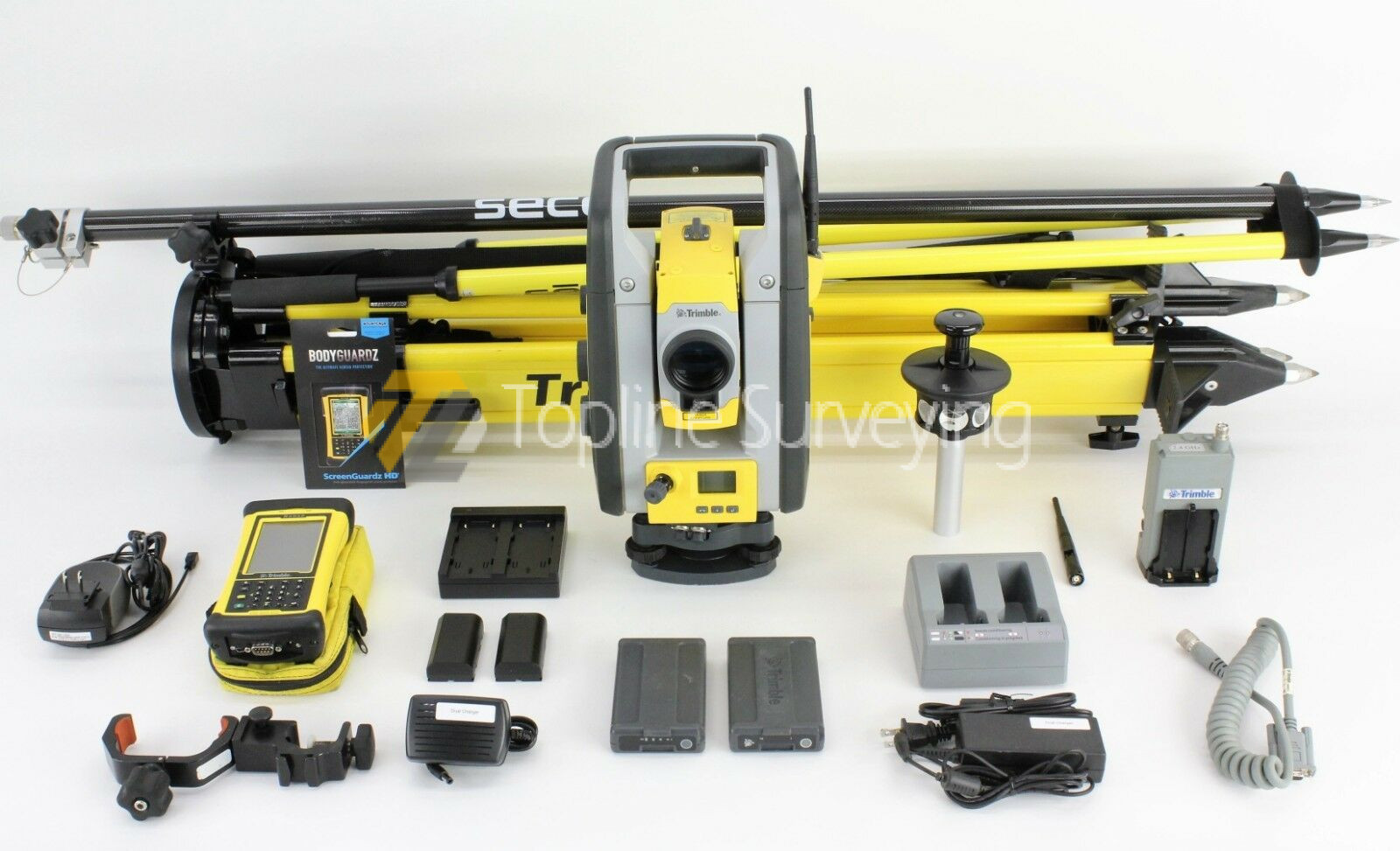

Includes:

• Trimble SPS620 Robotic Total Station
• 5″/5″ with Laser, DR, Autolock, Robotic, Reflectorless
• Current Calibration
• Accuracy: Approximately 1/4″ at 500 ft
• Internal 2.4 GHz Radio with Antenna
• 1 – 360° Prism
• 2 – Dual Chargers w/ Power Supply
• 1 – Trimble Transport Case
• Trimble Nomad Data Collector
• Trimble LM80 Layout Software Version 5.3.0
• Robotic Options Enabled
• WLAN, Bluetooth, & GPS Enabled
• 1 – Trimble 2.4 GHz External Grey Radio w/ Antenna
• 2 – Radio Batteries
• Touchscreen w/ Stylus
• 1 – Rod Mounting Bracket
• 1 – Pack of Screen Protectors
• 1 – Wall Charger
• 1 – USB Data Cable
• 1 – Trimble Transport Case
• New Seco Tri-Max Tripod
• New Seco Carbon Fiber Rod
• New Seco Adjustable Bipod
