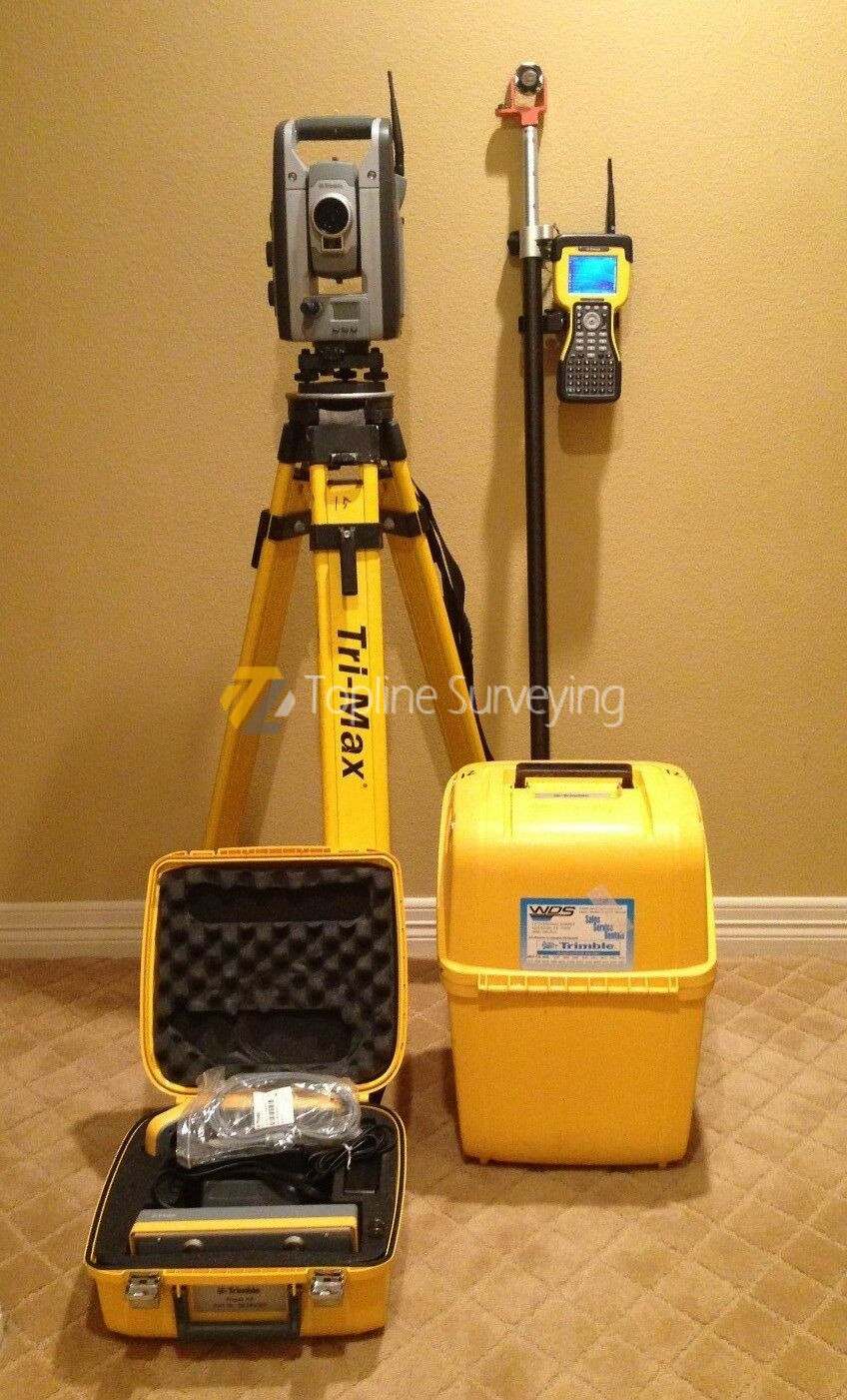

Flash sale Trimble S8 1” HIGH PRECISION Robotic Total Station with TSC2 is in perfect working condition! This unit looks and works great! Comes with 60 days warranty.
- Angular Accuracy: 1” (0.3 mgon) standard deviation.
- EDM Precision (Prism Mode): 1 mm + 1 ppm.
- EDM Precision (DR Mode): 2 mm + 2 ppm (Direct Reflex reflectorless measuring).
- Range (Prism): Up to 2,500 m to a single prism; up to 5,500 m with long-range options.
- Range (DR): 100 m to 150 m on standard surfaces.
- Technologies: Features MagDrive servo technology for silent, rapid movement, and SurePoint technology for automatic error correction against wind or sinkage.
- Engineering Options: Often equipped with Trimble FineLock (for avoiding prism interference in dense arrays) and 10 Hz high-speed dynamic data output.
2. Field Controller (TSC2)
- Software: Typically runs Trimble Survey Controller (or Trimble Access) field software.
- Connectivity: Integrated WLAN, Bluetooth, and internal 2.4 GHz radio designed to pair with the S8 robotic radio.
- OS & Build: Windows Mobile platform with a ruggedized, drop-resistant and weather-sealed housing meant for harsh field conditions.
3. Physical Specs & Power
- Total Station Weight: 5.25 kg (11.57 lbs) instrument unit + 0.7 kg (1.54 lbs) tribrach.
- Battery: Rechargeable Li-Ion battery system providing continuous robotic operation
