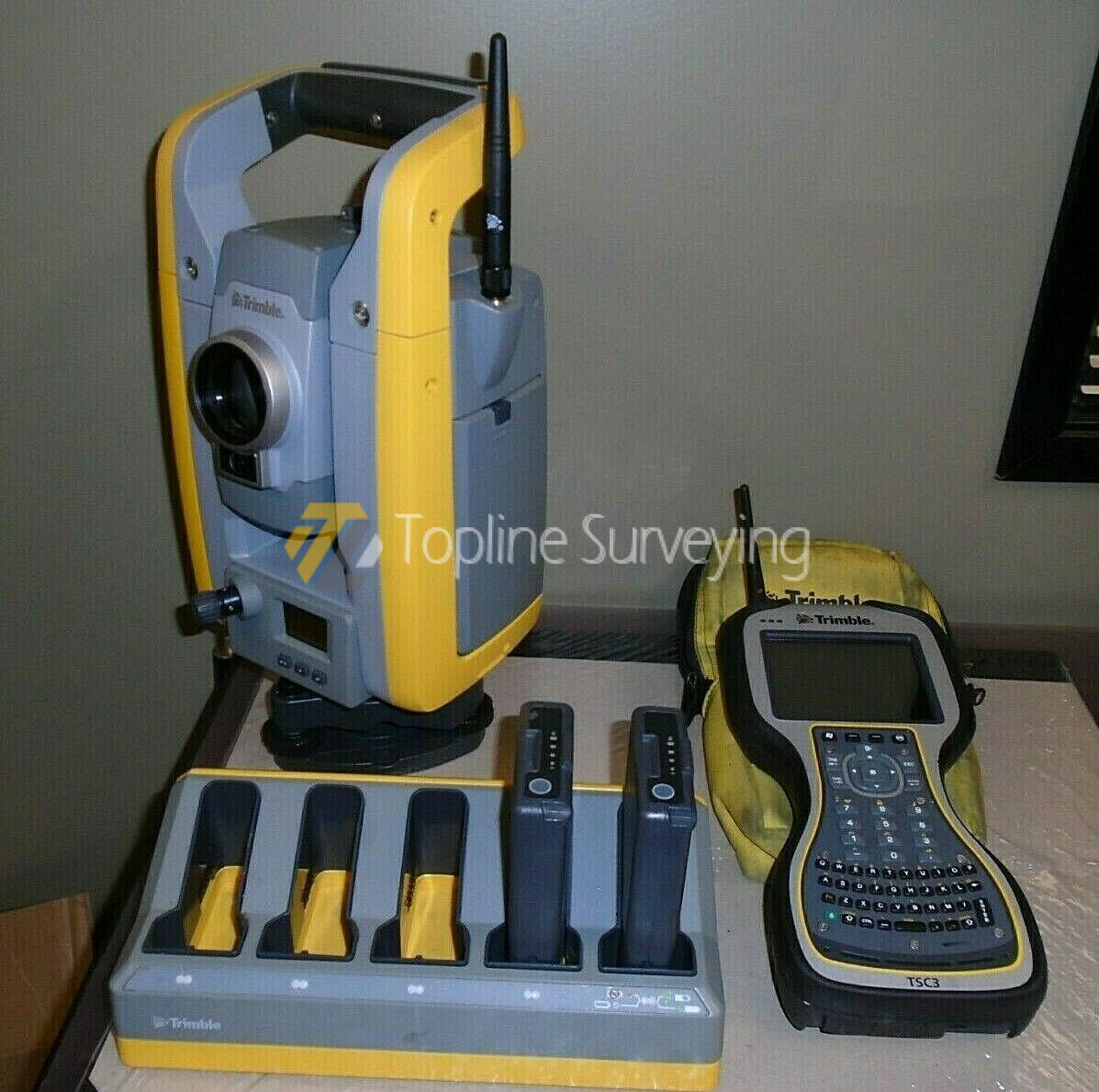

Flash sale Trimble S6 DR300+ 3″ Fully Robotic Total Stations is in perfect working condition! This unit looks and works great! Comes with 60 days warranty.
Angle Measurement
- Accuracy (DIN 18723): 3″ (1.0 mgon)
- Angle Reading (least count): 0.1″ (0.01 mgon)
- Compensation: 4-axis centering accuracy, working range ± 5.5′ (100 mgon)Â
Distance Measurement (EDM)
- Prism Range: 2,500 m (8,202 ft) for a single prism; up to 5,500 m (18,044 ft) in Long Range mode
- Prism Accuracy: ±(2 mm + 2 ppm)
- Reflectorless (DR) Range: 300 m (984 ft) on standard surfaces
- Reflectorless Accuracy: ±(3 mm + 2 ppm)
- Measurement Time: Standard Prism (1.5 s), DR mode (1.5 s to 3 s)Â
Robotic & Tracking Performance
- Autolock Target Range (Passive Prisms): 700 m (2,296 ft)
- Robotic Range: Typically operates up to 300 m–800 m depending on radio limits and site conditions
- Search Time (Gives full 360-degree search): typical search time is roughly 3–10 seconds depending on window size
- Technologies: Supports MultiTrack technology for both active and passive targetsÂ
Power & Physical Specifications
- Internal Battery: Rechargeable 7.4 V, 4.4 Ah Li-Ion intelligent smart battery
- Operating Time: Approx. 6 hours in full robotic mode
- Weight: 5.4 kg (11.90 lbs) including handle and internal battery
