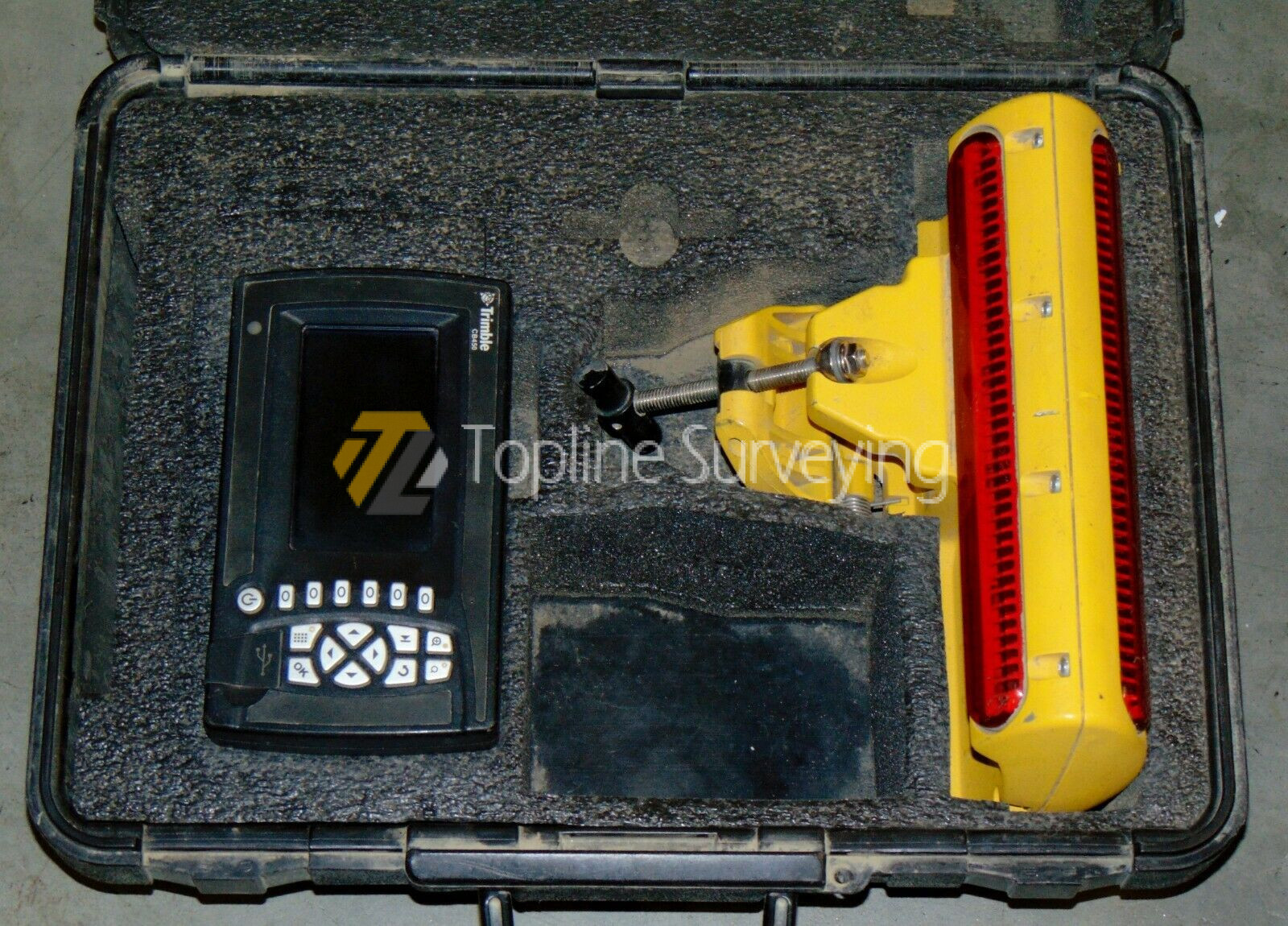

Flash sale Trimble CB450 Display with LR410 Laser Receiver GCS900 Grade Control System is in perfect working condition! This unit looks and works great! Comes with 60 days warranty.
- Screen: 4.3″ (10.9 cm) full-color LCD with adjustable backlight controls.
- Guidance Indicators: Four LED lightbars (dimmable) for peripheral grade awareness, plus built-in adjustable audible tones.
- Connectivity: Environmentally-sealed high-speed USB port.
- Durability: Heavy-duty, environmentally sealed housing built specifically to withstand harsh, high-vibration construction environments.
- Data Storage: Can store an unlimited number of profile guidance models, depth specifications, and bucket/blade definitions
- Detection Window: 23.1 cm (9.1 inches).
- Detection Accuracy: Linear detection within 1.5 mm (0.06″) with selectable on-grade accuracies.
- Field of View: 360-degree laser detection.
- Electrical Input: 9 to 30 VDC (500mA max @ 12VDC).
- Environmental Rating: Environmentally sealed to IP68 standards (weatherproof and fully submersible).
- Operating Temperature: -40 °C to +71 °C (-40 °F to +160 °F).
- Weight: <2.8 kg (6.3 lbs) including the mounting clamp
- Machine Automation: Integrates with hydraulic valves on dozers and graders for automated lift and tilt control of the blade.
- Accuracy: Yields high vertical accuracies typically ranging between 3 mm and 5 mm.
- Scalability: The system is fully upgradable, allowing you to add more LR410 receivers, sonic tracers, or transition into full 3D GNSS/GPS capabilities later on.
